Operation Equipment
High-quality beds are designed to enhance patient comfort and caregiver efficiency.

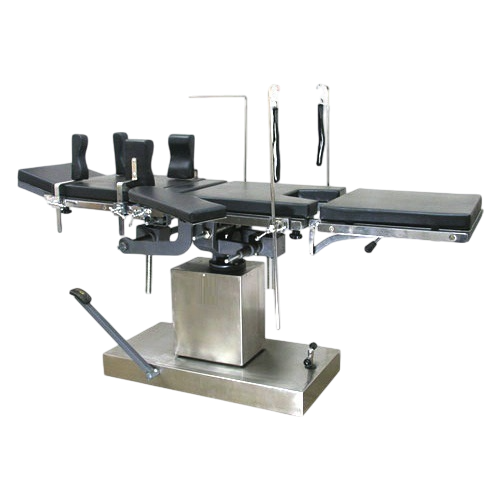

Hydraulic Operation Table Side End Control
- The hydraulic lift gives a vertical jerk free and smooth movement to the system by a foot pedal.
- Solid Base Mounted on castors capable of moving on a smooth cemented floor and with a locking device too, giving rigidity to the table.
- Foot rails and toe space on the base for surgeons.
- All accessories are ensured rust-proof by chromium plating.
- The tabletop in five sections without any wobble and with a perineal cutout for a drainage tray.
| Dimensions | 1900 x 600 mm |
|---|---|
| Height adjustable | 650 —980 mm |
| Trendelenburg | 25° |
| Reverse Trendelenburg | 25° |
| Lateral Right / Left | 25° |
| Back Section | 60°/40° |
| Head Section | 45°/90° |
| Leg Section | 20°/90° |
| Castors | Four |
Standard Accessories
- Lateral Supports
- Anaesthetic Screen
- Shoulder Supports
- Arm Rest (2)
- Mattress.Optional
- Geoponic Crutches
- All accessories are available in Stainless Steel.
- X-ray translucent top instead of S.S. Top.

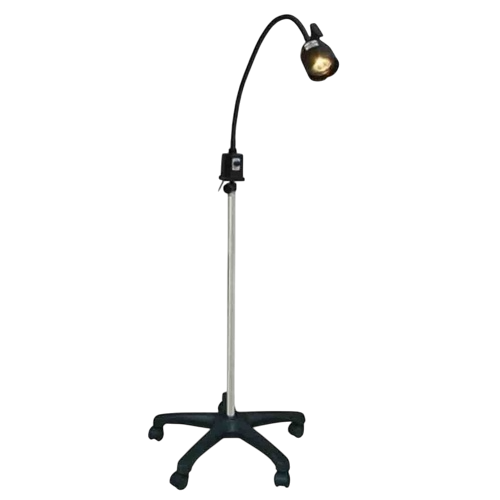

Spot Light
| Arm | Flexible Arm with Digital Controller. |
|---|---|
| Length of Arm | 750 mm |
| Voltage | 210-230V |
| Fitted With | LED 21 X 3W |
| Lux Out-Put | 10,0000 Lux (At 50cm) |
| Dome | Heat Proof Plastic |

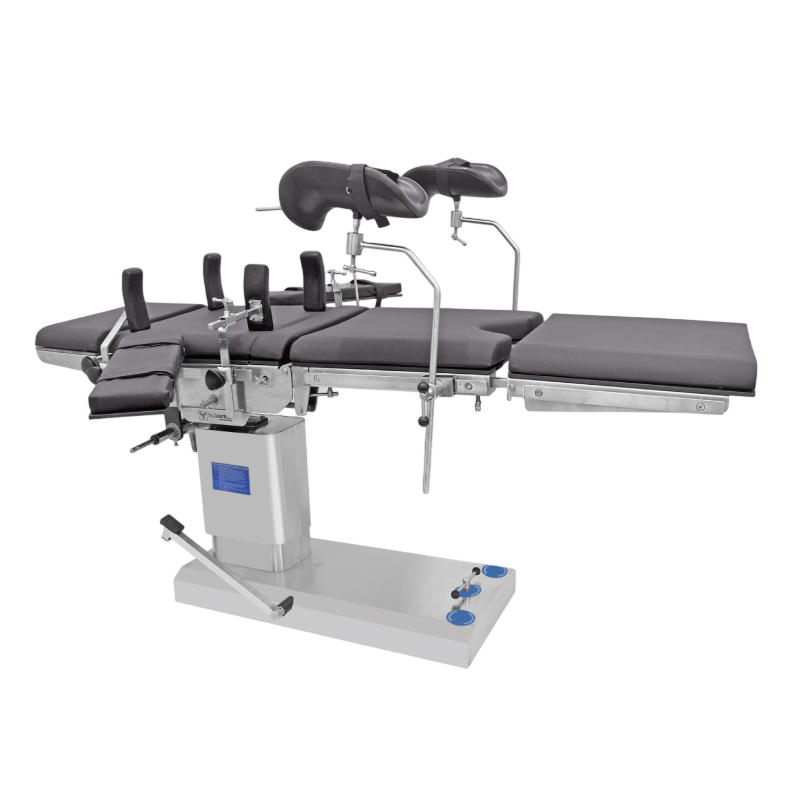

C-ARM Compatible Hydraulic Operating Table
C-ARM O.T. Table is suitable for all kinds of surgeries, i.e,. general surgery, vascular surgery, cardio, neurology, urology, gynecology, proctology, laparoscopy, traumatic surgery, plastic surgery, and other. The base & column of the table are made of high-quality medical stainless steel (grade-304) Non-reflecting surface, antibacterial & easy to clean. We provide Height adjustment, Lateral Tilts, Trendelenburg, and Flex-Reflex, Chair Position, Kidney bridge position. Specification Length of Table: 1800 mm, Width of Table Top: 520 mm, Minimum Height: Min. 750 mm, Maximum Height: max. 1,000 mm Trendelenburg: 25 Degree Reverse Trendelenburg: 25 Degree Lateral Tilt: 20 Degree Bock Section: ± 20 Degree Head Section: ± 60 Degree Leg Section: 90 Degree Floor Locking System: Manual Standard Accessories
- Eccentric Pillars
- Stainless Fittings
- Detachable, Head, Leg & Pelvic Section
- Five Section Radio — Translucent Top In-built Kidney bridge.
- Base & cover made of attractive, easy-to-clean Stainless Steel.
- Sophisticated mechanics provide smooth, stepless
- articulation of the tabletop for precise patient positioning

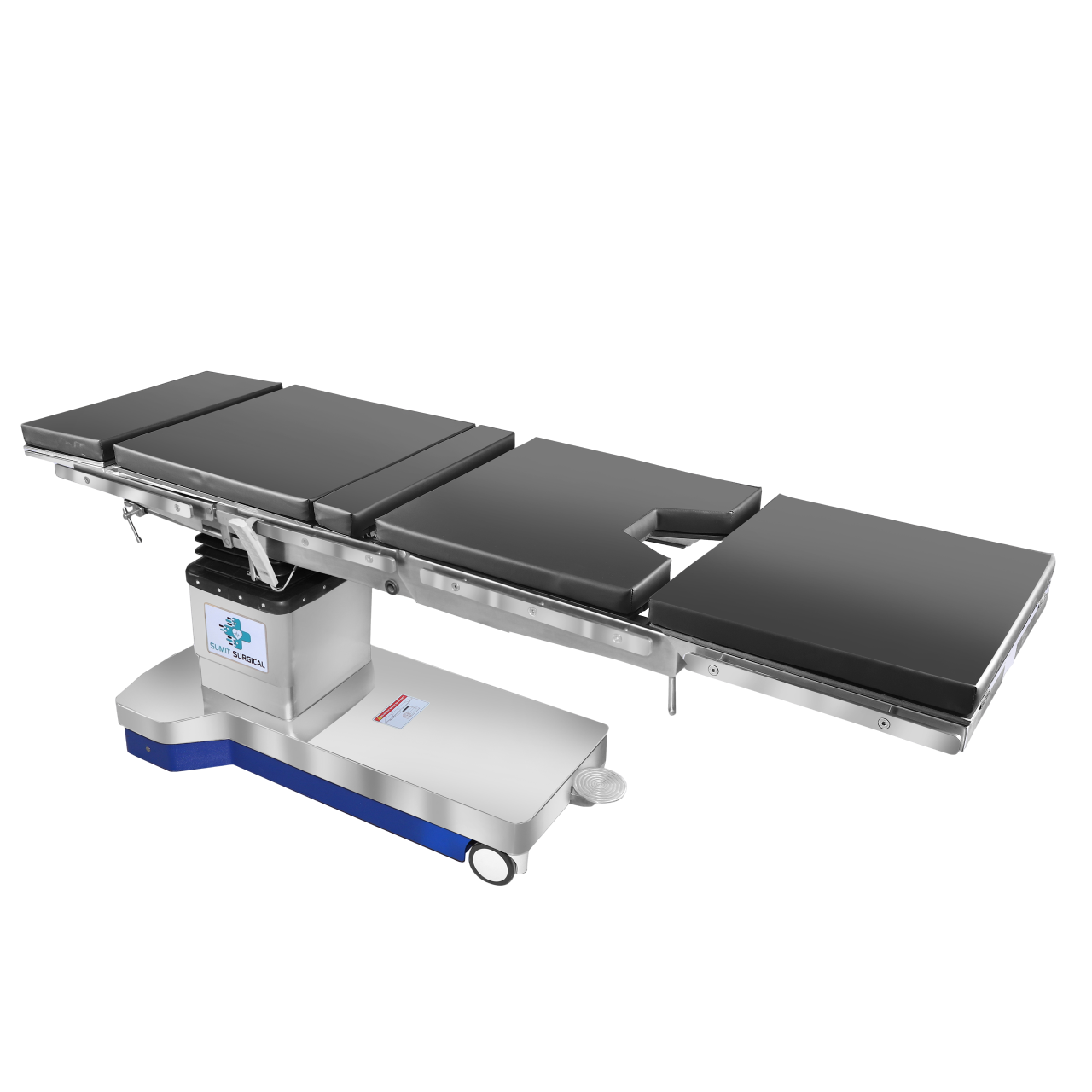

Electric Surgical Operating Table
The table is suitable for all kinds of surgeries, i.e., general surgery, neurology, urology, gynecology, laparoscopy, and others. The base & column of the table are made of high-quality medical stainless steel (grade-304)non-reflecting surface, antibacterial & easy to clean. We provide with Height adjustment, Lateral Tilts, Trendelenburg, and Flex-Reflex, Chair Position & Kidney bridge position.
Specification
| Length of Table | 1800 mm |
|---|---|
| Width of Table Top | 520 mm |
| Minimum Height | Min. 750 mm |
| Maximum Height | max. 1 000mm |
| Trendelenburg | 25 Degree |
| Reverse Tenddelenburg | 25 Degree |
| Lateral Tilt | ± 20 Degree |
| Bock Section | ± 60 Degree |
| Head Section | ± 60 Degree |
| Leg Section | 90 Degree |
| Floor Locking System | Manual |

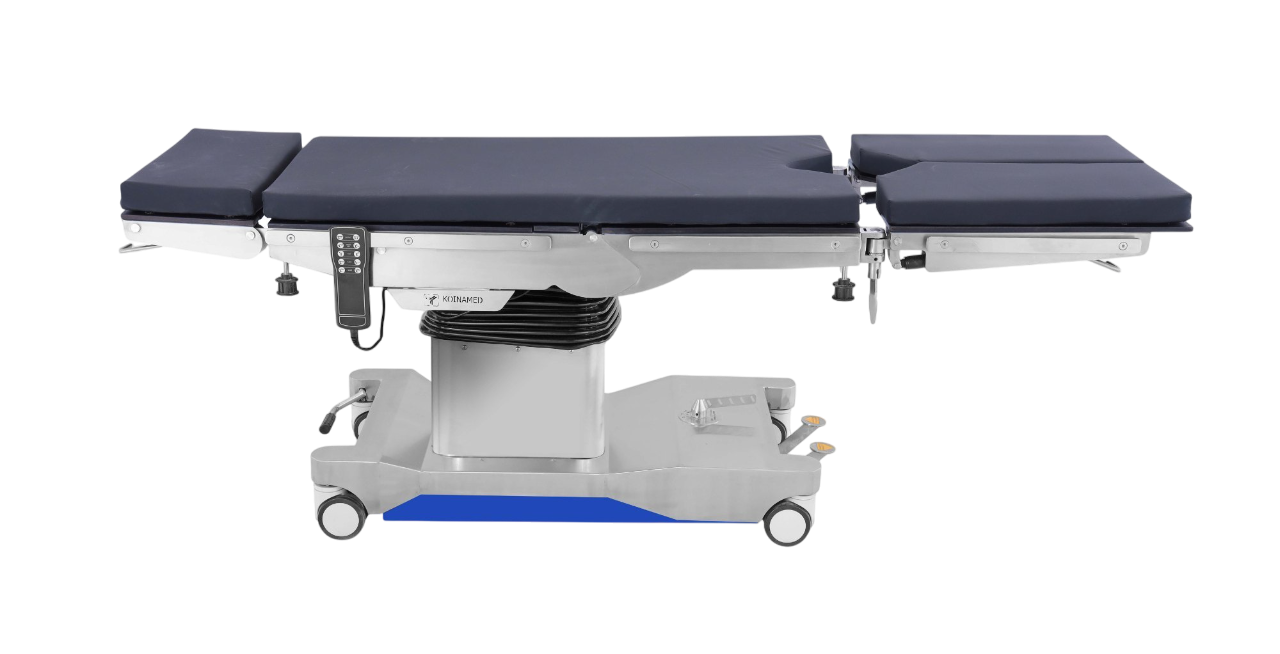

C-Arm Fully Electro-Mechanical Operated Surgical Table with Remote and Battery Backup
Electric + Manual O.T. Table comes with the latest technology. This is a two-way operated surgical table that can be operated electrically as well as manually by using a handle with the help of imported motors fitted inside. The Electric + Manual O.T. Table is suitable for all kinds of general multipurpose surgeries. Key Structure: The five-section table top is radiolucent and is equipped with removable, antistatic 50mm thick mattresses. The base and column of the table is made of high-quality medical stainless steel. Non-reflecting surface, antibacterial & easy to clean. Height adjustment. Lateral tilts, trendelenburg, flex-reflex, chair position and are realized ny remote control. The head and leg sections are detachable and interchangeable. Technical Data Deluxe 0. The table is suitable for all kinds of surgeries, i.e., general surgery, neurology, urology, gynecology, laparoscopy, and others. The base & column of the table is made of high-quality medical stainless steel (grade-304), Non- reflecting surface, antibacterial & easy to clean. We provide with Height adjustment, Lateral Tilts, Trendelenburg, and Flex-Reflex, Chair Position & Kidney bridge position. Specification
| Length of Table | 2040 mm |
|---|---|
| Width of Table Top | 530 mm |
| Minimum Height | Min. 750 mm |
| Maximum Height | max. 1000mm |
| Trendelenburg | 25 Degree |
| Reverse Tenddelenburg | 25 Degree |
| Lateral Tilt | ± 20 Degree |
| Bock Section | 90+60 Degree |
| Head Section | ± 60 Degree |
| Leg Section | 90 Degree |
| Floor Locking System | Yes |
Standard Accessories
| Padded Shoulder support | 1 pair |
|---|---|
| Padded Side support | 1 pair |
| Anesthesia Screen | 1 pcs |
| Arm rest | 1 pair |
| Cruchies rod with pad | 1 pair |
| Clamps with Handle | : 7 pcs |
| Assembly with Handle | 2 pcs |
| Try Handle | 1 pcs |

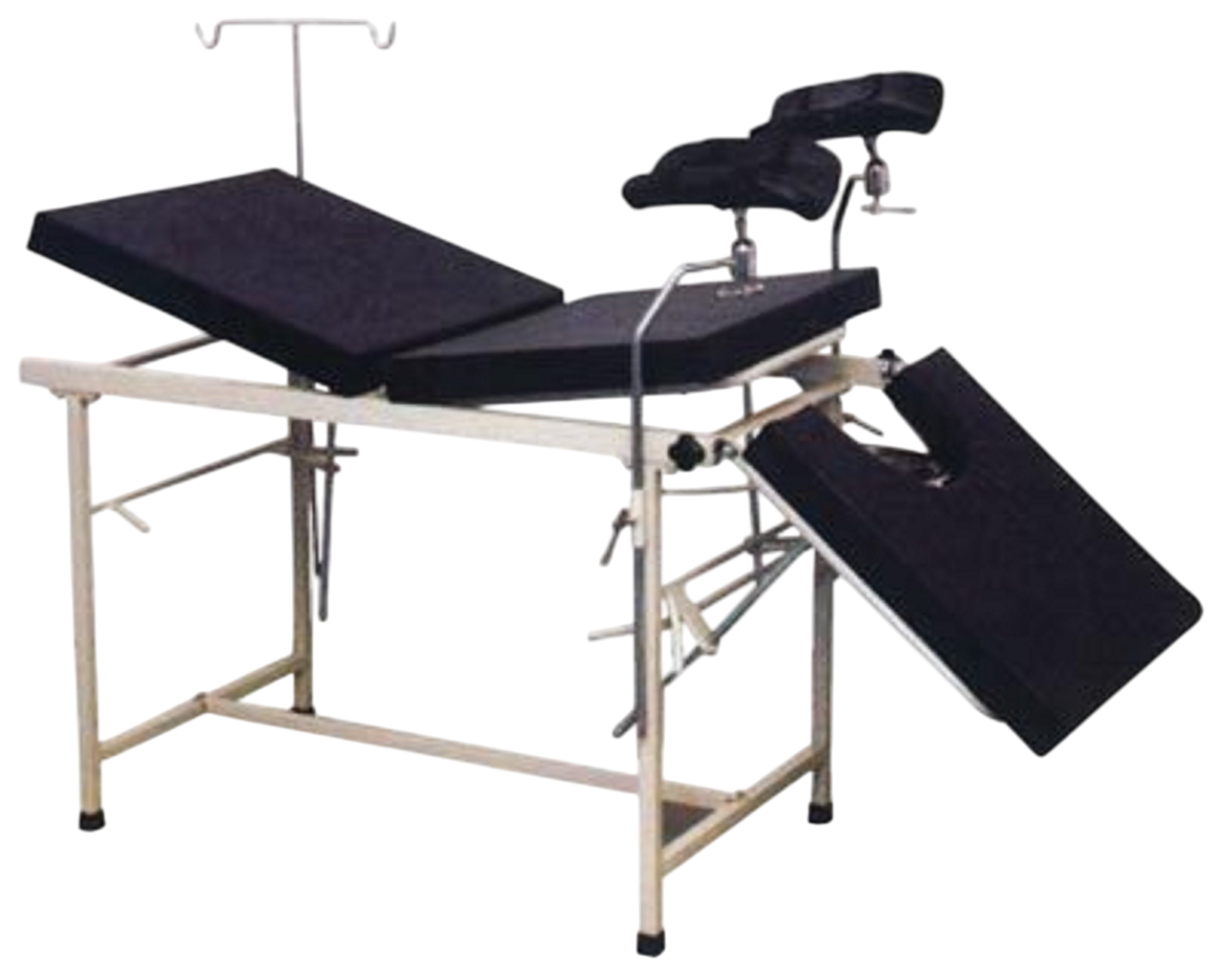

Delivery Table Mechanical
- Easy installation
- Accurate dimensions
- Optimum performance
- M.S. tubular framework on 10 cms castors
- Height adjustment by crank mechanism with lever handle
- Five-section S.S. tops
- All positions viz, “straight”, Trendelenburg & Reverse Trendelenburg Positions, Kidney bridge, Lithotomy position
- Overall size: 72” X 20” X 32”
- Fine finished

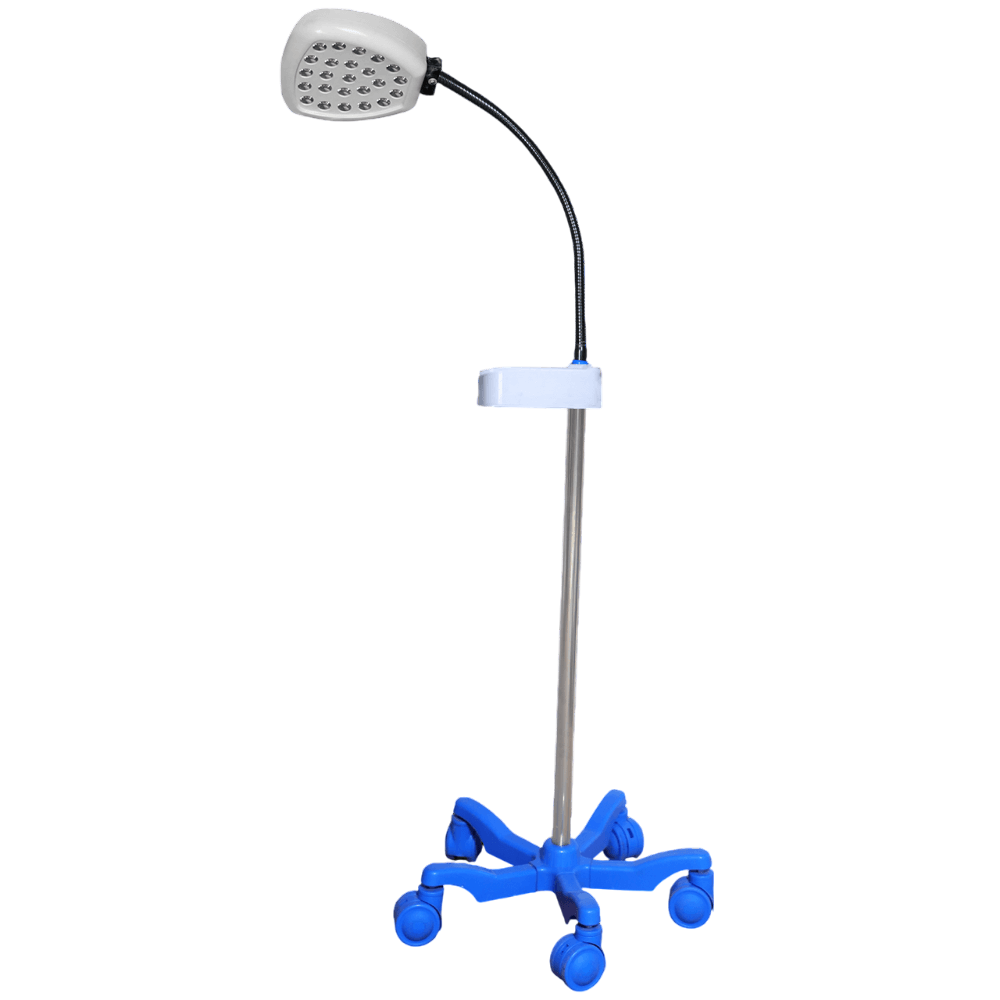

Examination Lights
| Arm | Flexible Arm with on/off switch and incorporated electronic transformer. |
|---|---|
| Length of Arm | 750 mm |
| Voltage | 210-230V |
| Fitted With | LED 7 X 1 W 20000 / 12 X 1 W / 18 X 1W |
| Dome | M S Powder Coated |

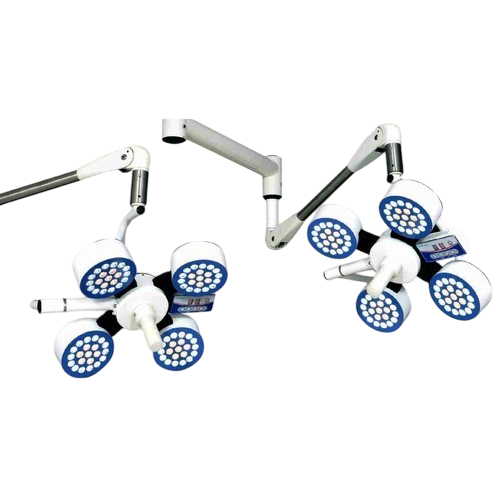

Operation Theater Light
Memory Function, High-quality sterilizable handle, with protective fire-resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays, and improves light penetration. With a special European design for ventilation of heat. The body is made of high-quality fire-resistant polymer.
| Intensity | 1,30,000 + 1,60,000 Lux ±10% |
|---|---|
| Size of Light Field | 12-30 cm |
| Colour Temperature | 4000-5000 K |
| Colour Reduction Index | 93 RA |
| LED Life | >50000 Hrs. |
| Number of LED | 84 + 126 |
| Diameter of Light | 500mm x 2 |
| Brightness Control | Capacitive Touch Panel |
| Power Supply | 220V/50Hz AC |
| Focusing | Adjustabl |
| Battery Backup | Optional |

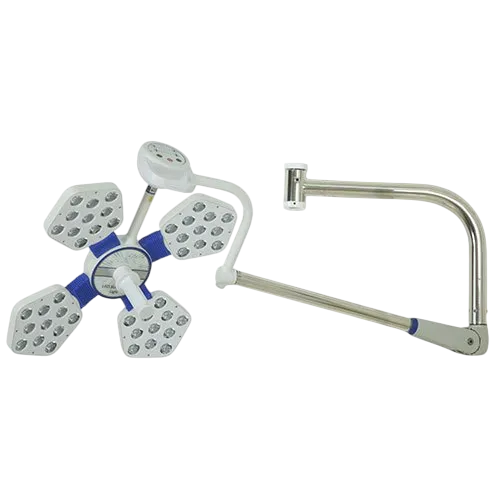

Operation Theater Light
Memory Function, High-quality sterilizable handle, with protective fire-resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays, and improves light penetration. With a special European design for ventilation of heat. The body is made of high-quality fire-resistant polymer.
| Intensity | 1,30,000 Lux ±10% |
|---|---|
| Size of Light Field | 12-30 cm |
| Colour Temperature | 4000-5000 K |
| Colour Reduction Index | 93 RA |
| LED Life | >50000 Hrs. |
| Number of LED | 84 |
| Diameter of Light | 500mm x 2 |
| Brightness Control | Capacitive Touch Panel |
| Power Supply | 220V/50Hz AC |
| Focusing | Adjustabl |
| Battery Backup | Optional |
Easily detachable connector based OT Light / Optional

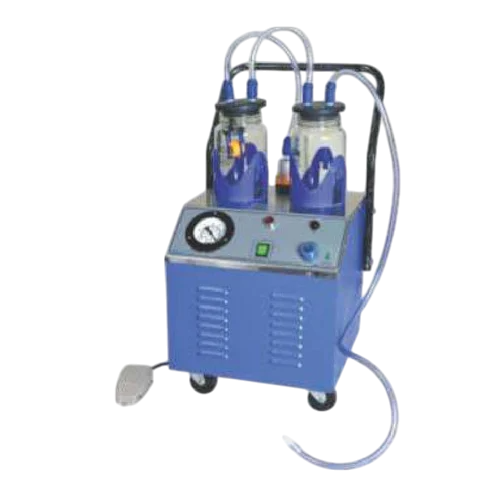

Twin Bottle (22-25 ltr min.)
- Main body constructed from M.S. sheet with S.S. top, fitted with Push Handle
- D.C. outlet socket on side for connecting foot pedal* (*Optional – Not included)
- Fitted with Vacuum Gauge, ON/OFF Switch cum indicator, Vacuum Control Knob
- Overflow cut-off device fitted in one bottle
- Supplied with patient suction tube with plastic tip and electric lead
| Technical Specifications: | Â |
|---|---|
| Capacity | – 760mmHg ± 10 having a flow rate of approx. 22 – 25 Lit. / min |
| Double Jar | 2 x 1.5 Lit. graduated glass with rubber lids |
| Vacuum Gauge | Bourden type 0 – 760mmHg &0-30 inHg |
| Pump | Oil immersed vacuum pump |
Optional:
- Bacterial Filter
- Polycarbonate jars instead of glass
- Also available in all S.S. body
- Foot Pedal
- Yankauer Suction Canula (Metal)
